The Kubota ZD1211-60 Diesel Zero Turn Mower is engineered for quality from top to bottom! The ZD1200 Series mowers are packed with the best of Kubota's advanced technology like the bright LCD display panel. The digital display screen shows the operator key indicators such as oil pressure, water temperature and fuel level!

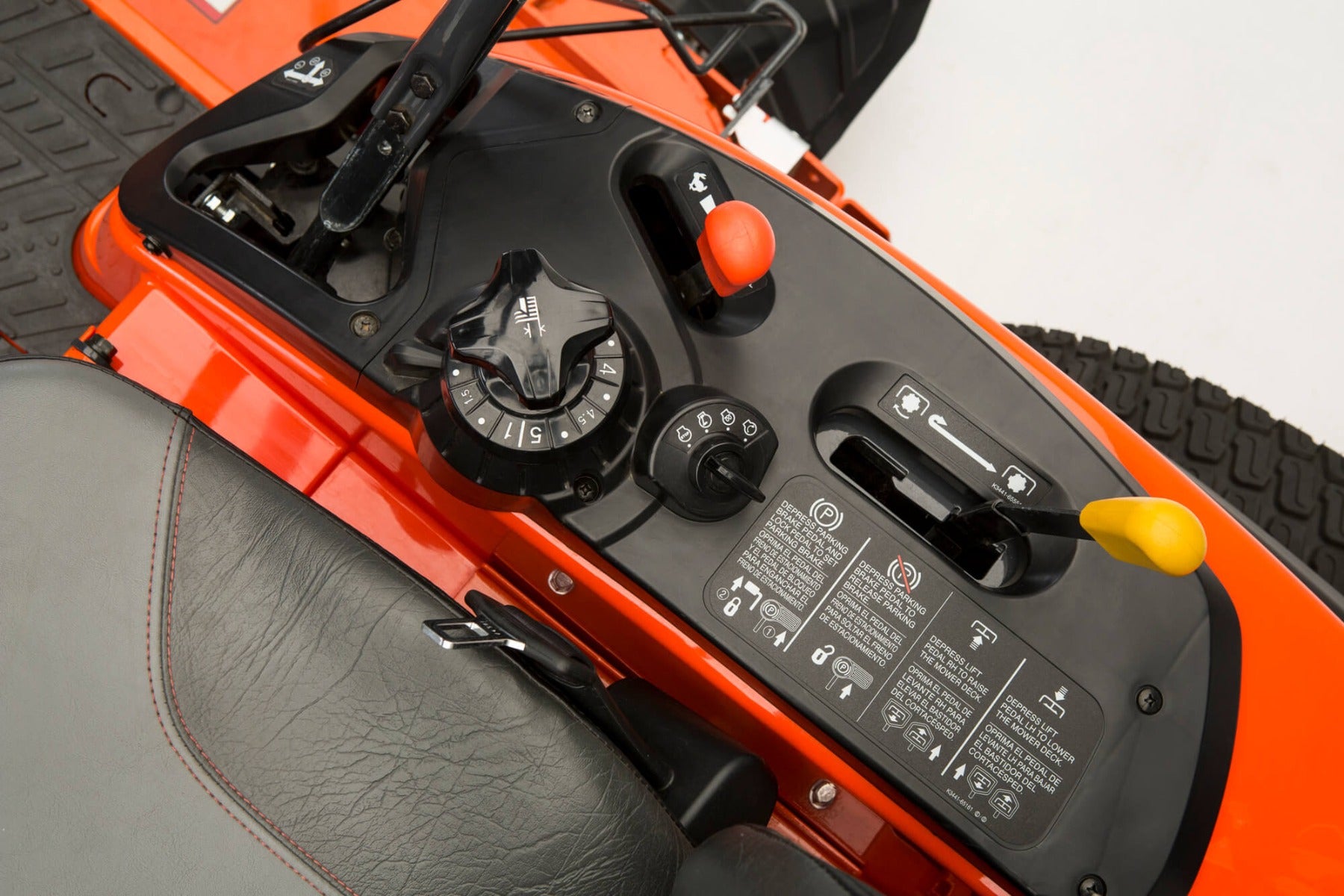

The 2-pedal hydraulic deck lift system makes avoiding obstacles a breeze, with the push of the foot pedal, the deck can easily be raised and lowered again.
The new suspension seat with adjustable armrests is designed with the operator in mind. The higher backrest and lumbar support ensure that the operator can be comfortable and productive all day long!
The Kubota ZD1211-60 Zero Turn Mower Diesel ZD1200 Series is available from Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue, Toronto, Ontario.
for more information.
*Price is subject to change without notice. Errors and omissions exempted.
Features
Kubota ZD1211-60 Zero Turn Mower Features Include:
- Kubota Diesel Engine - The ZD series of mowers use Kubota's powerful and reliable engines. These Kubota engines are enviornmentally friendly, fuel efficent and perfectly matched for the ZD1211-60.
- Suspension Seat - The new suspension seat with adjustable armrests means less fatigue and more productivity! Featuring a higher back rest and lumbar support, the operator is sure feel much better after a day on the job!

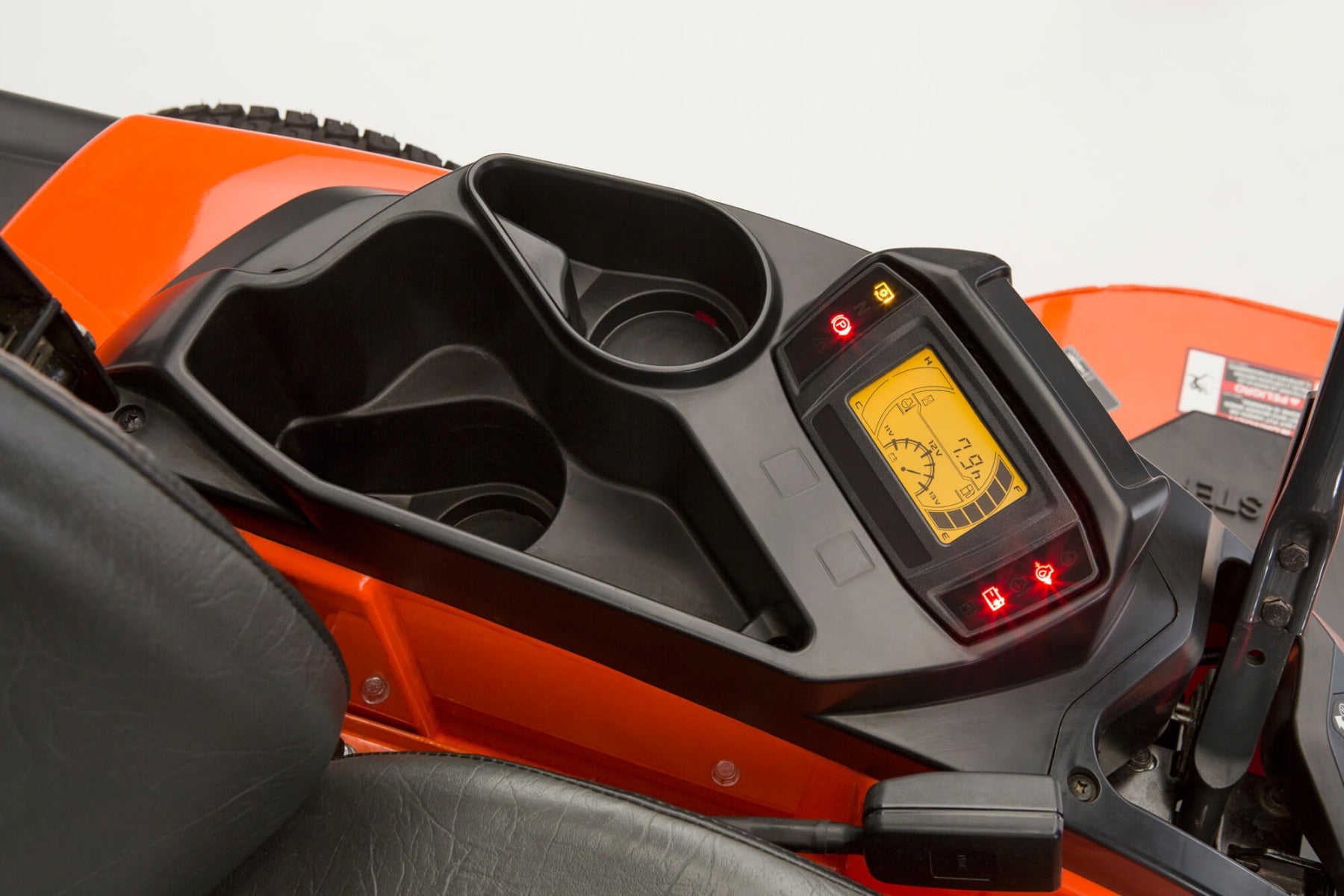

- LCD Dash Panel - With largest LCD display in it's class, the operator is able to see key metrics such as oil pressure, water temperature, fuel levels and voltmeter. The new hour meter also notifies the operator when the machine is due for maintenance or service.
- ACS Deck (Aerodynamic Cutting System) - The ZD 1200 series of mowers feature Kubota's ACS Deck. This improves the airflow around the deck allowing you to use less power and save fuel!
- Outstanding Stability - The ZD Series' long wheelbase and large-diameter rear tires give the ZD1211-60 incredible stability on slopes and uneven terrain.
- Low Profile Tires - The new low profile tires add another layer of stability and traction to the ZD1211-60. The wide tires help distribute the weight to minimize turf damage!
Specifications
Kubota ZD1211-60 Zero Turn Mower Specifications:
Engine
- Model - Kubota D1105-E4-ZD-2
- Type - Diesel, liquid-cooled (3 cyl.)
- Max Horsepower - 24.8 HP @ 3000 rpm
- Total Displacement - 68.53 cc
- Starting System - Key Switch
Tires
- Tread (Front) - 40.6"
- Tread (Rear) - 38.6"
- Tire Size (Front) - 13" x 6.5"- 6" smooth pneumatic
- Tire Size (Rear) - 24" x 12" - 14" Low profile tire
Transmission
- Transmission System - 2-HST with Gear Reduction
- Speed Control - 2-hand levers
- Travel Speed Range
- Forward - 0-9 km/h
- Reverse - 0-5 km/h
- Engine Stop System - Key Stop
Power Take Off (PTO)
- Type - Shaft drive
- Clutch Type - Hydraulic independent PTO clutch with wet multi disks
- PTO Brake - Wet single disc
- Brake Type - Wet multi disks, foot applied, released
Mower Deck
- Model - RCK60P-1000Z
- Mower Lift System - Hydraulic
- Mower Deck Type - Kubota ProDeck with ACS
- Deck Depth - 6"
- Belt Type - Multi belt
- Deck Steel Thickness - 0.16" / 4.2mm
- Anti-scalp roller - Rigid
- Cutting Width - 60"
- Number of Blades - 3
- Cutting Height - 1" - 5"
- Mower Mounting System - Quick joint ,parallel linkage
- Blade Tip Speed - 18200 FPM
Dimensions
- Overall Length - 89"
- Overall Width - 73.8"
- Overall Height - 74.4"
- Wheelbase - 48.5"
- Weight - 1687 lbs
Other
- Seat - Deluxe suspension seat
- Fuel Tank Capacity - 13 L
- Battery - maintenance free battery : 12V, CCA : 430A, RC : 80 min
- Alternator Capacity - AC Dynamo : 14 Amps @ 14 Volts
- Water Temperature Indicator - Standard
- Hour Meter - Standard
- Fuel Guage - Sight Window
